9500-8e

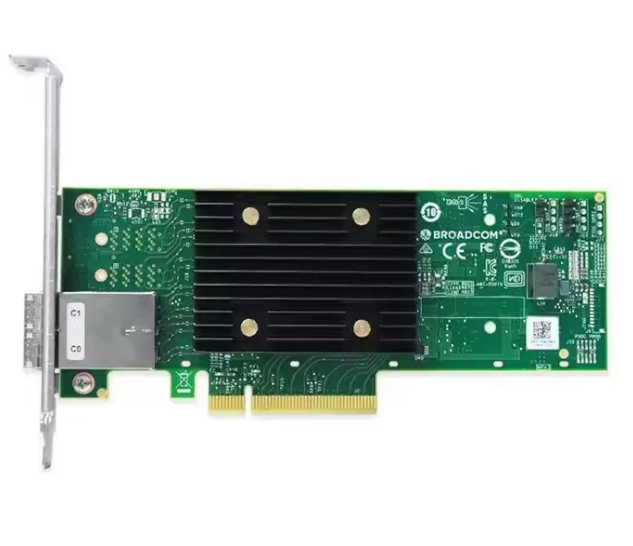

Introduction to Broadcom 9500 Series Tri-Mode HBA Adapters

The 9500 Series is a line of enterprise storage adapters from Broadcom, designed for modern server platforms, cloud storage systems, virtualization environments, and data center deployments. The series includes multiple models with different port configurations, supporting mixed storage device connections on a single controller.

Controller Architecture and Core Configuration

This adapter line uses a Tri-Mode controller architecture, with a PCIe 4.0 host interface. The 9500-8i model, as the base configuration of the series, provides internal storage connection lanes for server chassis. The series also includes 8e (external port) and 16e (higher port count) models to adapt to different storage expansion needs across commercial infrastructure.

Use Cases in Commercial Storage Environments

These HBAs apply to scenarios including enterprise storage servers, software-defined storage infrastructure, virtualization platforms, and data center storage expansion. They support mixed deployment of different types of storage devices, helping commercial users adjust storage configurations according to business workload requirements.

Technical Specifications of Broadcom 9500-8i HBA Card

Key Capabilities of 9500 Series Tri-Mode HBAs

Tri-Mode Storage Protocol Support

The 9500 Series supports SAS, SATA, and NVMe storage protocols on a single controller, enabling mixed connection of different storage media. SAS devices operate at 12Gb/s per lane, while NVMe devices transmit data through the PCIe protocol. This Tri-Mode design eliminates the need for separate adapters for different storage types, supporting flexible deployment in mixed storage environments.

PCIe Gen4 Transmission Performance

The adapter adopts a PCIe 4.0 x8 host interface. Compared with PCIe Gen3 x8 adapters, it provides higher bus bandwidth and lower interface latency, which supports higher data access throughput for storage workloads. The interface bandwidth matches the transmission requirements of multiple NVMe devices, reducing bottlenecks in storage data transmission paths.

Deployment and System Compatibility

The 9500 Series is designed for standard server architectures, with compatibility for mainstream commercial server operating systems and virtualization platforms. The adapter supports standard storage management protocols, facilitating unified configuration and monitoring in enterprise storage environments. Its design follows industry-standard form factors, fitting into standard server expansion slots without additional structural modification.

FAQ About Broadcom 9500 HBAs

What storage protocols do 9500 Series HBAs support?

9500 Series HBAs support SAS, SATA, and NVMe storage protocols on a single controller, enabling mixed deployment of different types of storage devices within the same server system.

What is the difference between 9500-8i, 8e and 16e models?

The 9500-8i provides 8 internal storage lanes for connecting devices inside the server chassis. The 9500-8e provides 8 external ports for connecting external storage enclosures. The 9500-16e provides 16 external ports for larger-scale external storage expansion. All models share the same Tri-Mode protocol support.

Which host interface does the 9500-8i adopt?

The Broadcom 9500-8i adopts a PCIe 4.0 x8 host interface, compatible with standard server PCIe x8 and x16 slots. It can also operate on PCIe Gen3 slots at corresponding bandwidth levels.
